Heavy-duty electric punch (interchangeable dies) · Formax

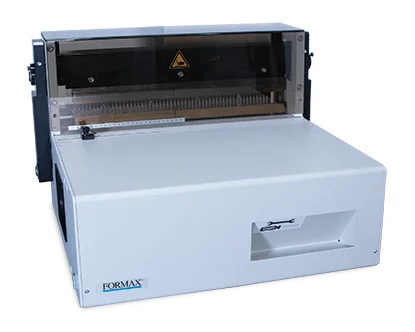

Formax Punch200
Binding type: Interchangeable dies for double-loop wire (2:1, 3:1), plastic comb and spiral coil · Punch capacity: Up to .15" (4 mm) thick
Listed on the manufacturer's website (source, as of Oct 18, 2026)
Where to buy
Machines in this class are mostly sold and serviced through the manufacturer's authorized dealers. We didn't find an Amazon listing for this exact model with a current offer. We don't show prices; ask a dealer or check the retailer for the current price.
Specifications
| Brand | Formax |
|---|---|
| Model | Punch200 |
| Type | Heavy-duty electric punch (interchangeable dies) |
| Binding type | Interchangeable dies for double-loop wire (2:1, 3:1), plastic comb and spiral coil |
| Punching | Electric; micro-switch sensor or foot pedal; horizontal feed |
| Punch capacity | Up to .15" (4 mm) thick |
| Punch length | Up to 19.7" (500 mm); minimum 2.4" (60 mm) with foot pedal |
| Speed | Up to 3,000 mechanical cycles per hour |
| Disengageable pins | Yes |
| Dimensions | 26.4" L × 17.7" D × 15.7" H (670 × 450 × 400 mm) |
| Power | 208 V, 3-phase, 20 A, 50/60 Hz |
| Weight | 247 lb (112 kg) |
Values as published by the manufacturer, in its own units. Fields the manufacturer doesn't state are left out rather than estimated. Shown without scores or rankings.
Similar models
The closest models on the main specifications, chosen the same way for every brand. Listed alphabetically; not a ranking.
DuoMac 431
3:1 double-loop wire and 4:1 spiral coil (round holes); wire closer · 20 sheets of 20 lb paper (single punch)
Image: Akiles ProductsDuoMac C41
Plastic comb and 4:1 spiral coil; built-in comb opener (1/4" to 2") · 20 sheets of 20 lb paper (single punch)

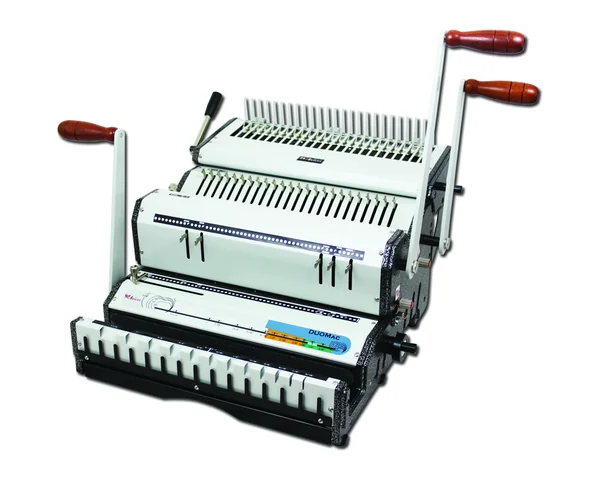

Image: Akiles ProductsDuoMac C51
Plastic comb and 5:1 spiral coil; built-in comb opener (1/4" to 2") · 20 sheets of 20 lb paper (single punch)
Image: Rhin-O-TuffOnyx HD7500H
Interchangeable dies for coil, double-loop wire and comb · Up to 40 sheets (80 pages) of 20 lb bond
