Pouch laminator · Formax

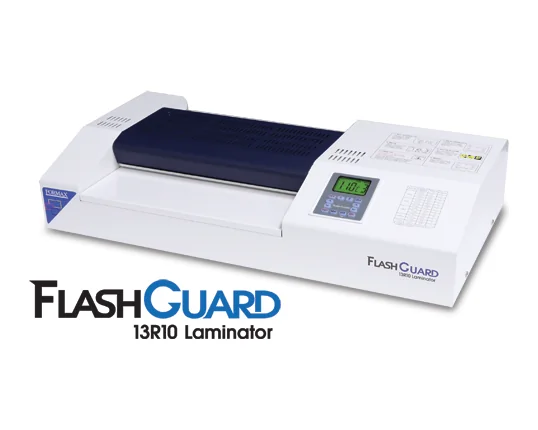

Formax FlashGuard 13R10
Maximum width: Up to 13" (330 mm) · Speed: Up to 141" per minute (3,600 mm/min)
Listed on the manufacturer's website (source, as of Oct 18, 2026)
Where to buy
Machines in this class are mostly sold and serviced through the manufacturer's authorized dealers. We didn't find an Amazon listing for this exact model with a current offer. We don't show prices; ask a dealer or check the retailer for the current price.
Specifications
| Brand | Formax |
|---|---|
| Model | FlashGuard 13R10 |
| Type | Pouch laminator |
| Type | Pouch laminator (hot and cold) |
| Maximum width | Up to 13" (330 mm) |
| Speed | Up to 141" per minute (3,600 mm/min) |
| Maximum pouch thickness | Up to 14 mil (350 mic) |
| Maximum laminating thickness | Up to .118" (3 mm) |
| Rollers | 10 (6 heated, 2 cooling, 2 output) |
| Temperature | Up to 320 °F (160 °C); variable temperature and speed; 2 memory settings |
| Warm-up | 6 minutes |
| Power | 1,500 W, 110-120 V, 50/60 Hz, 15 A |
| Dimensions | 21" L × 10.6" D × 5" H (536 × 271 × 112 mm) |
| Weight | 57 lb (26 kg) |
Values as published by the manufacturer, in its own units. Fields the manufacturer doesn't state are left out rather than estimated. Shown without scores or rankings.
Similar models
The closest models on the main specifications, chosen the same way for every brand. Listed alphabetically; not a ranking.
Image: Akiles ProductsProLam Photo
13" (330 mm) · Variable, 12"-59" per minute

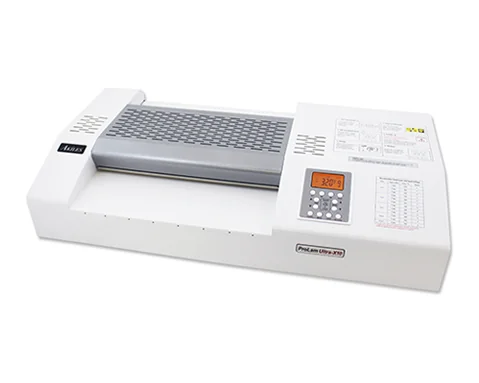

Image: Akiles ProductsProLam Ultra X10
13" (330 mm) · 142" per minute; 9 speed settings
FlashGuard 13R8
Up to 13" (330 mm) · Up to 82" per minute (2,100 mm/min)
FoilGlazer II
Paper up to 14.37" × 23.62" (laminating min. 11.69" × 8.26"); film width 7.87"-13.38" · Laminating 16.4' per minute; foil fusing 9.84' per minute
